Curating DRVI factor annotations

The integrative step: for each factor-direction, compare all tools’ outputs and assign a final label.

This notebook reloads embed from disk and reads whatever the other notebooks stored in embed.uns / embed.var. Tools whose notebook you did not run simply show “(not run)”.

For each factor: inspect(...) prints all evidence, plot_factor_summary(...) shows its UMAP pattern and top genes, inspect_marker_gene(...) tests a specific gene. Record decisions in MANUAL_LABELS.

This is one of four companion notebooks. Run whichever of cell types, biological processes, and LLM tools you need first — they each store results into the same embed.h5ad that this notebook reads.

Contact

Questions: scverse discourse. Bugs: issue tracker.

Prerequisites

Run one or more of the companion notebooks first so that embed.h5ad contains their stored results. This notebook needs only the base drvi-py package (pip install drvi-py, which provides drvi and scanpy) — none of the tutorial extras (LLM or enrichment) are required.

Imports

import warnings
warnings.filterwarnings("ignore")

import scanpy as sc
import pandas as pd
import anndata as ad
import drvi
from drvi.model import DRVI
from pathlib import Path

Setup

# Input/output directory holding the trained model and embeddings. Update accordingly.
io_dir = Path("./tmp_io/drvi_immune_128/").resolve()

embed_path = io_dir / "embed.h5ad"
adata = sc.read_h5ad(io_dir / "adata_preprocesses.h5ad")
embed = sc.read_h5ad(embed_path)
model = DRVI.load(io_dir / "drvi_model", adata)
scores_df = model.get_interpretability_scores(embed, adata, key="OOD_combined")

drvi_score_cutoff = 0.1
annot_col = "final_annotation"

INFO     File
         /lustre/groups/ml01/code/amirali.moinfar/projects/drvi_tutorials/tmp_io/drvi_immune_128/drvi_model/model.p
         t already downloaded
INFO     DRVI: The model is trained with DRVI version 0.2.6.
INFO     DRVI: Updaging data setup config ...
INFO     DRVI: Done updating data source registry. Loading in DRVI version 0.2.6.
INFO     DRVI: Loading model from DRVI version 0.2.6.
INFO     DRVI: Done updating model args. Loading in 0.2.6.
INFO     DRVI: The model has been initialized

Config: which stored results to show

# Top-N terms shown per enrichment tool.
CURATION_TOP_N = {"gseapy_enrichr": 3, "gprofiler": 5, "decoupler": 1}

ENRICHMENT_TOOLS = [
    ("gseapy_enrichr", "gseapy_enrichr_results", "Term"),
    ("gprofiler",      "gprofiler_results",      "name"),
    ("decoupler",      "decoupler_results",      "term"),
]

# LLM tools — populated only if you ran the LLM notebook; otherwise shown as None.
LLM_TOOLS = [
    ("llm celltype",   "llm_direct_results", "cell_type"),
    ("llm process",    "llm_direct_results", "biological_process"),
    ("cassia general", "cassia_results",     "Predicted General Cell Type"),
    ("cassia detailed", "cassia_results",    "Predicted Detailed Cell Type"),
    ("gs2txt",         "gs2txt_results",     "description"),
]

# Cell-type SMI matches written by the cell-types notebook (matching column names).
VAR_ANNOTATIONS = [
    ("known (SMI)", "positive_direction_match_with_user_annotations",
                    "negative_direction_match_with_user_annotations"),
    ("celltypist",  "positive_direction_match_with_celltypist",
                    "negative_direction_match_with_celltypist"),
]

Inspection helpers

def _var_value(embed, col, factor_title):
    if col not in embed.var.columns:
        return None
    row = embed.var.loc[embed.var["title"] == factor_title, col].dropna()
    return row.iloc[0] if not row.empty else None


def _uns_value(embed, key, col, factor, direction):
    df = embed.uns.get(key, pd.DataFrame())
    if df.empty or col not in df.columns:
        return None
    if "direction" in df.columns:
        mask = (df["factor"] == factor) & (df["direction"] == direction)
    else:
        mask = df["factor"] == f"{factor}{direction}"
    sub = df.loc[mask, col].dropna()
    return sub.iloc[0] if not sub.empty else None

def inspect(factor_label, embed, scores_df=scores_df, cutoff=drvi_score_cutoff):
    """Print a summary of all annotation tools for a single factor-direction."""
    factor, direction = factor_label[:-1].strip(), factor_label[-1]
    suf = "positive" if direction == "+" else "negative"
    print(f"\n{'=' * 60}\n  {factor_label}\n{'=' * 60}")

    print(f"\n- Manual -\n  {_var_value(embed, f'{suf}_direction_manual_label', factor)}")

    n_passing = (scores_df[factor_label] >= cutoff).sum()
    if n_passing == 0:
        print("\nNo genes above cutoff - uninformative direction.")
        return

    print(f"\nTop 10 genes ({n_passing} above cutoff):")
    for g, s in scores_df[factor_label].sort_values(ascending=False).head(10).items():
        print(f"  {g:<15} {s:.3f}")

    print("\n- Known / CellTypist -")
    for label, pos_col, neg_col in VAR_ANNOTATIONS:
        print(f"  {label:<18} {_var_value(embed, pos_col if direction == '+' else neg_col, factor)}")

    print("\n- LLM tools -")
    for label, key, col in LLM_TOOLS:
        print(f"  {label:<18} {_uns_value(embed, key, col, factor, direction)}")

    print("\n- Enrichment tools -")
    for label, key, term_col in ENRICHMENT_TOOLS:
        df = embed.uns.get(key, pd.DataFrame())
        if df.empty or term_col not in df.columns:
            print(f"  {label}: (not run)")
            continue
        hits = df[df["factor"] == factor_label][term_col].head(CURATION_TOP_N[label]).tolist() or ["(no hits)"]
        print(f"  {label}:\n" + "\n".join(f"    - {h}" for h in hits))

def plot_factor_summary(factor_label, embed, adata, scores_df, annot_col="final_annotation", n_genes=4):
    adata.obsm["X_drvi_umap"] = embed[adata.obs.index].obsm["X_umap"]
    drvi.utils.pl.plot_latent_dims_in_umap(
        embed, dim_subset=[factor_label], directional=True, additional_columns=[annot_col]
    )
    top = scores_df[factor_label].sort_values(ascending=False).index.to_list()[:n_genes]
    sc.pl.embedding(adata, "X_drvi_umap", color=top)

def inspect_marker_gene(gene, embed, adata, scores_df=scores_df, top_n=10):
    adata.obsm["X_drvi_umap"] = embed[adata.obs.index].obsm["X_umap"]
    sc.pl.embedding(adata, "X_drvi_umap", color=gene, cmap="viridis")
    print(f"Top {top_n} factors for gene '{gene}':")
    print(scores_df.loc[gene].sort_values(ascending=False).head(top_n))

Go factor by factor

factor_label = "DR 43-"
inspect(factor_label, embed)

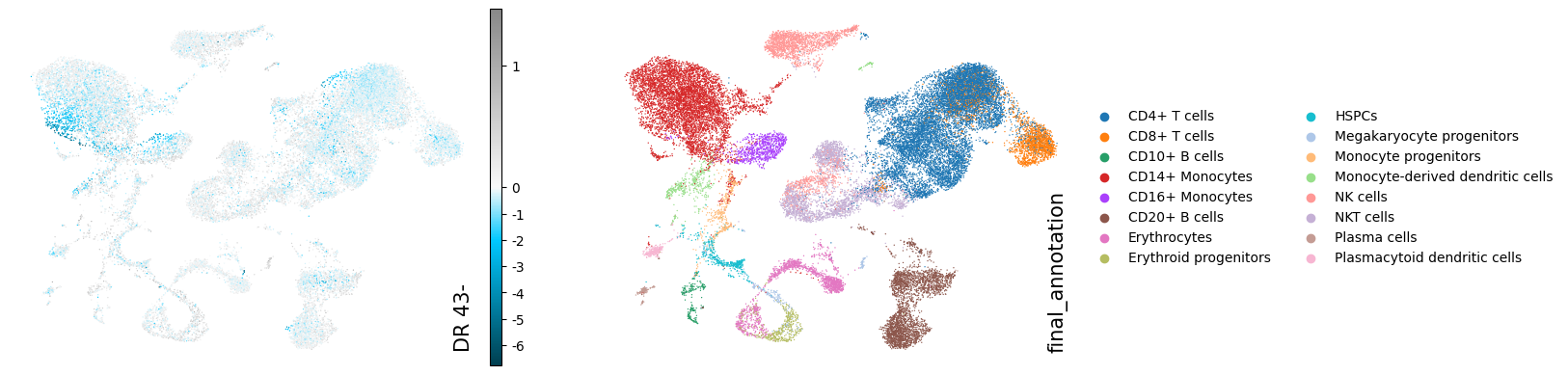

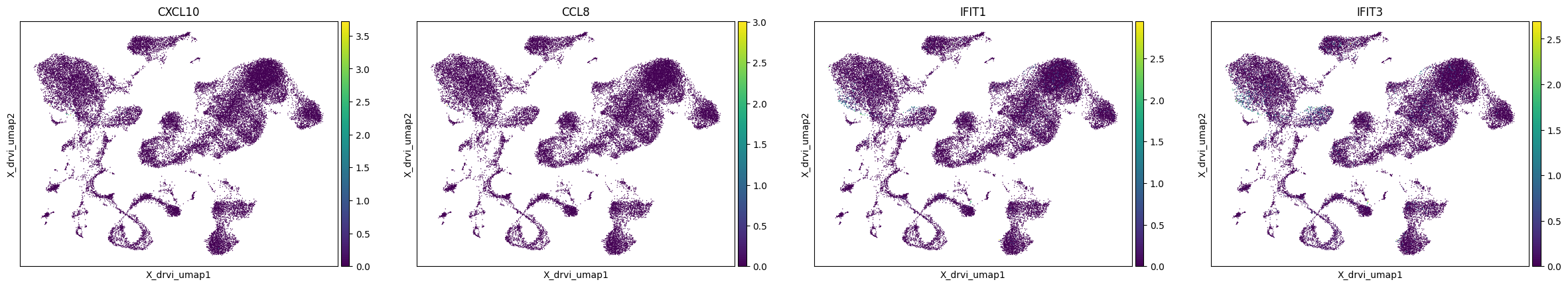

plot_factor_summary(factor_label, embed, adata, scores_df)

============================================================
  DR 43-
============================================================

- Manual -
  None

Top 10 genes (76 above cutoff):
  CXCL10          14.917
  CCL8            14.041
  IFIT1           9.182
  IFIT3           7.573
  IFIT2           5.997
  ISG15           5.139
  RSAD2           5.053
  IFI44L          4.233
  APOBEC3A        3.243
  HERC5           3.017

- Known / CellTypist -
  known (SMI)        None
  celltypist         None

- LLM tools -
  llm celltype       unclear (interferon-responding immune cells; the program is a cell-state signature not restricted to one lineage)
  llm process        Type I interferon antiviral response (ISG signature)
  cassia general     Inflammatory Monocytes
  cassia detailed    Inflammatory/Activated Classical Monocytes (CD14+), Inflammatory Monocyte-derived Dendritic Cells (mo-DCs), Plasmacytoid Dendritic Cells (pDCs)
  gs2txt             The perturbed genes collectively orchestrate a robust interferon-mediated antiviral innate immune response, characterized by the coordinated induction of interferon-stimulated genes that establish an intracellular antiviral state and inhibit viral genome replication. Concurrent upregulation of chemokines facilitates leukocyte recruitment and amplifies inflammatory signaling within circulating immune cells. This perturbation primarily reflects the activation of type I and type II interferon signaling pathways to mount a comprehensive defense against viral infection.

- Enrichment tools -
  gseapy_enrichr:
    - Defense Response To Virus (GO:0051607)
    - Defense Response To Symbiont (GO:0140546)
    - Negative Regulation Of Viral Process (GO:0048525)
  gprofiler:
    - negative regulation of viral genome replication
    - defense response to virus
    - response to virus
    - negative regulation of viral process
    - viral genome replication
  decoupler:
    - IRF9

Inspect a marker gene

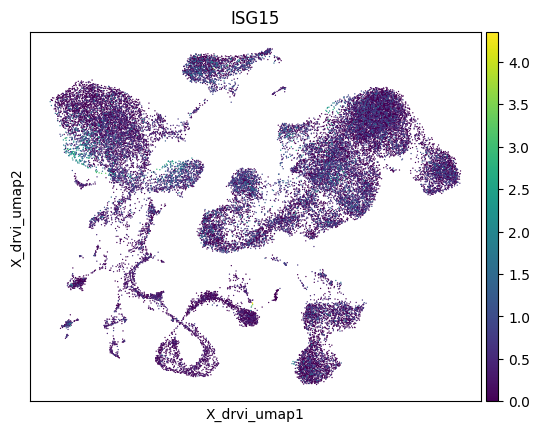

marker_gene = "ISG15"
inspect_marker_gene(marker_gene, embed, adata)

Top 10 factors for gene 'ISG15':
title
DR 43-    5.138984
DR 1-     0.138256
DR 9-     0.127650
DR 55-    0.108796
DR 10+    0.075751
DR 53+    0.062952
DR 27-    0.060177
DR 25+    0.047311
DR 6+     0.039649
DR 3+     0.037884
Name: ISG15, dtype: float32

Record manual decisions

MANUAL_LABELS = {
    "DR 43-": "Interferon response",
}

Write manual labels back

for d, suf in [("+", "positive"), ("-", "negative")]:
    mapping = {k[:-1].strip(): v for k, v in MANUAL_LABELS.items() if k.endswith(d)}
    embed.var[f"{suf}_direction_manual_label"] = embed.var["title"].map(mapping)

ad.settings.allow_write_nullable_strings = True
embed.write_h5ad(embed_path)
print(f"Saved to: {embed_path}")

Saved to: /lustre/groups/ml01/code/amirali.moinfar/projects/drvi_tutorials/tmp_io/drvi_immune_128/embed.h5ad
