General training and interpretability pipeline#
In this notebook, we analyze the immune dataset of 9 batches from four human peripheral blood and bone marrow studies, with 16 annotated cell types. We apply DRVI with 128 latent dimensions to showcase the following:
How to train DRVI
Observe vanished dimensions
Observe the latent space in UMAP and heatmap
How to run the interpretability pipeline
How to identify and check individual dimensions
Contact#
For questions and help requests, you can reach out in the scverse discourse.
If you found a bug, please use the issue tracker.
Install#
If you try DRVI on colab, next cell will install dependencies.
Please remove this part if your environment is already setup.
import sys
# if branch is stable, will install via pypi, else will install from source
branch = "latest"
IN_COLAB = "google.colab" in sys.modules
if IN_COLAB and branch == "stable":
!pip install drvi-py[tutorials]
elif IN_COLAB and branch != "stable":
!pip install git+https://github.com/theislab/drvi.git#egg=drvi-py[tutorials]
Imports#
import warnings
warnings.filterwarnings("ignore")
import anndata as ad
import scanpy as sc
import scvi
import drvi
from pathlib import Path
from drvi.model import DRVI
from drvi.utils.misc import hvg_batch
print("Last run with scvi-tools version:", scvi.__version__)
print("Last run with DRVI version:", drvi.__version__)
Last run with scvi-tools version: 1.4.0.post1
Last run with DRVI version: 0.2.2
# Making plots prettier
sc.settings.set_figure_params(dpi=100, frameon=False)
sc.set_figure_params(dpi=100)
sc.set_figure_params(figsize=(3, 3))
from matplotlib import pyplot as plt
plt.rcParams["figure.dpi"] = 100
plt.rcParams["figure.figsize"] = (3, 3)
Config#
# Set this to false if you already trained your model and do not want to retrain.
overwrite = False
SEED = 1 # Set to None if you don't want to set seed
# Set input output directory to load data from and store model and embeddings there
# We use tmp_io/ directory in the same place as this notebook. Update accordingly.
io_dir = Path("./tmp_io/drvi_immune_128/")
io_dir.mkdir(parents=True, exist_ok=True)
io_dir
PosixPath('tmp_io/drvi_immune_128')
Download data#
input_anndata_path = io_dir.parent / "immune_all.h5ad"
input_anndata_path
PosixPath('tmp_io/immune_all.h5ad')
# Run this cell only if you need to download the data
import requests
url = f"https://api.figshare.com/v2/file/download/25717328"
if input_anndata_path.exists():
print("File already exists.")
else:
print("Downloading ...")
with requests.get(url, stream=True) as r:
r.raise_for_status()
with open(input_anndata_path, "wb") as f:
for chunk in r.iter_content(chunk_size=1024*1024): f.write(chunk)
print(f"Successfully downloaded: {input_anndata_path}")
File already exists.
Load Data#
adata = sc.read_h5ad(input_anndata_path)
# Remove dataset with non-count values
adata = adata[adata.obs["batch"] != "Villani"].copy()
# We shuffle the data for better visualization. Otherwise order of points in UMAP will not be random.
sc.pp.subsample(adata, fraction=1.)
adata
AnnData object with n_obs × n_vars = 32484 × 12303
obs: 'batch', 'chemistry', 'data_type', 'dpt_pseudotime', 'final_annotation', 'mt_frac', 'n_counts', 'n_genes', 'sample_ID', 'size_factors', 'species', 'study', 'tissue'
layers: 'counts'
Pre-processing#
adata.X = adata.layers["counts"].copy()
sc.pp.normalize_total(adata)
sc.pp.log1p(adata)
adata
AnnData object with n_obs × n_vars = 32484 × 12303
obs: 'batch', 'chemistry', 'data_type', 'dpt_pseudotime', 'final_annotation', 'mt_frac', 'n_counts', 'n_genes', 'sample_ID', 'size_factors', 'species', 'study', 'tissue'
uns: 'log1p'
layers: 'counts'
sc.pp.pca(adata)
sc.pp.neighbors(adata)
sc.tl.umap(adata)
adata
AnnData object with n_obs × n_vars = 32484 × 12303
obs: 'batch', 'chemistry', 'data_type', 'dpt_pseudotime', 'final_annotation', 'mt_frac', 'n_counts', 'n_genes', 'sample_ID', 'size_factors', 'species', 'study', 'tissue'
uns: 'log1p', 'pca', 'neighbors', 'umap'
obsm: 'X_pca', 'X_umap'
varm: 'PCs'
layers: 'counts'
obsp: 'distances', 'connectivities'
# Batch aware HVG selection (method is obtained from scIB metrics)
hvg_genes = hvg_batch(adata, batch_key="batch", target_genes=2000, adataOut=False)
adata = adata[:, hvg_genes].copy()
adata
This function is obtained from scIB metrics. Please don't forget to cite them if you use it.
Using 311 HVGs from full intersect set
Using 144 HVGs from n_batch-1 set
Using 176 HVGs from n_batch-2 set
Using 227 HVGs from n_batch-3 set
Using 305 HVGs from n_batch-4 set
Using 506 HVGs from n_batch-5 set
Using 331 HVGs from n_batch-6 set
Using 2000 HVGs
AnnData object with n_obs × n_vars = 32484 × 2000
obs: 'batch', 'chemistry', 'data_type', 'dpt_pseudotime', 'final_annotation', 'mt_frac', 'n_counts', 'n_genes', 'sample_ID', 'size_factors', 'species', 'study', 'tissue'
uns: 'log1p', 'pca', 'neighbors', 'umap'
obsm: 'X_pca', 'X_umap'
varm: 'PCs'
layers: 'counts'
obsp: 'distances', 'connectivities'

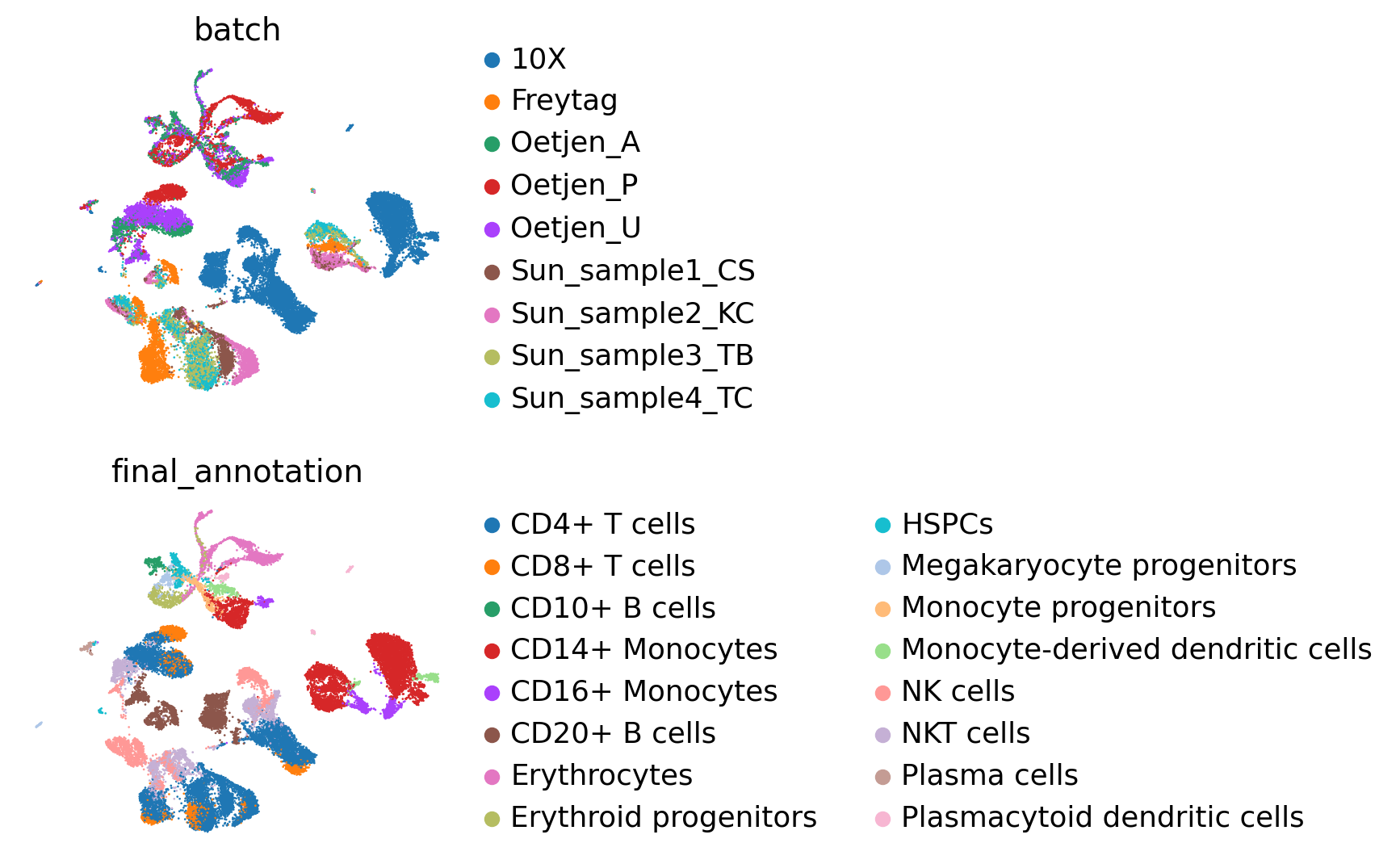

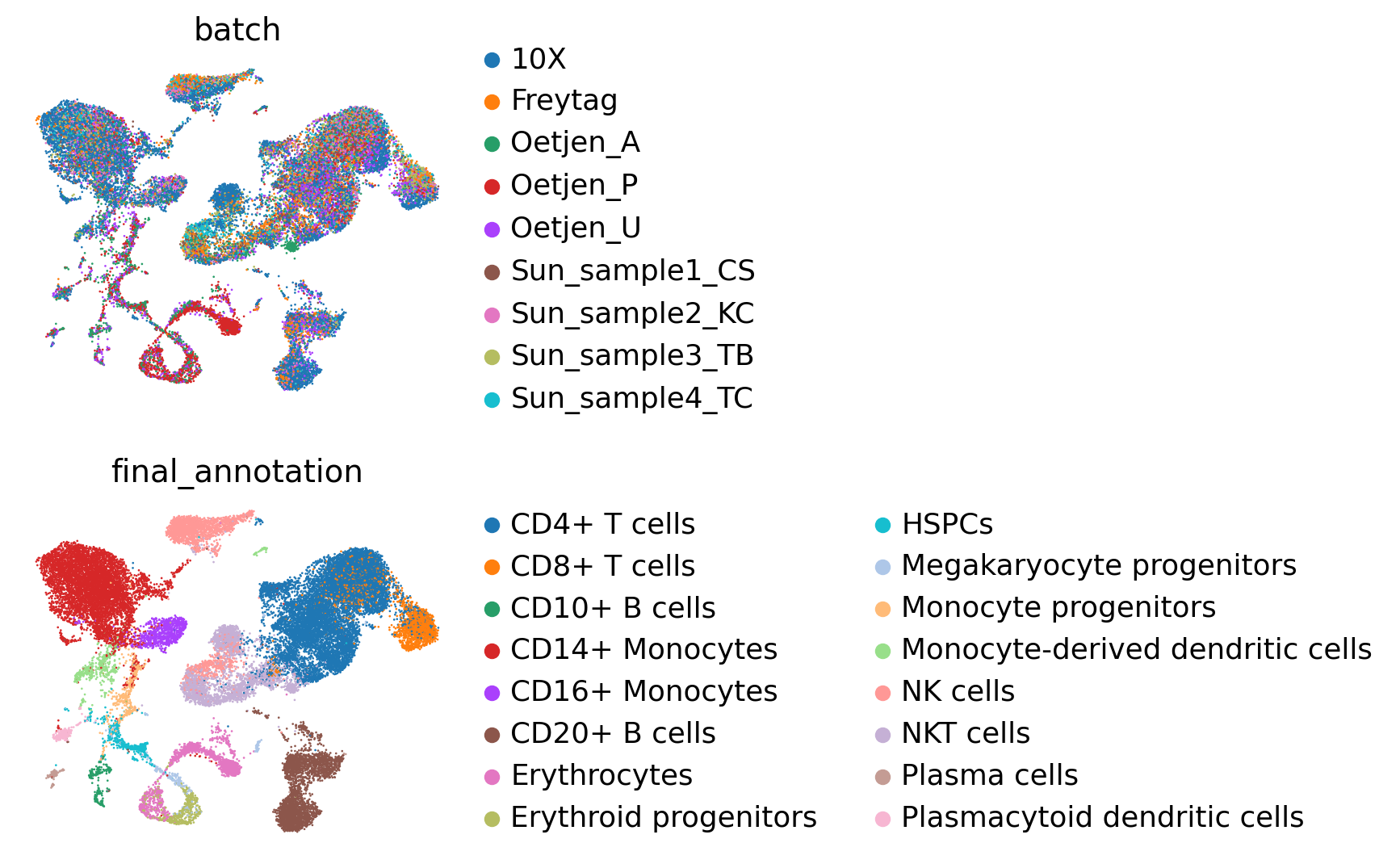

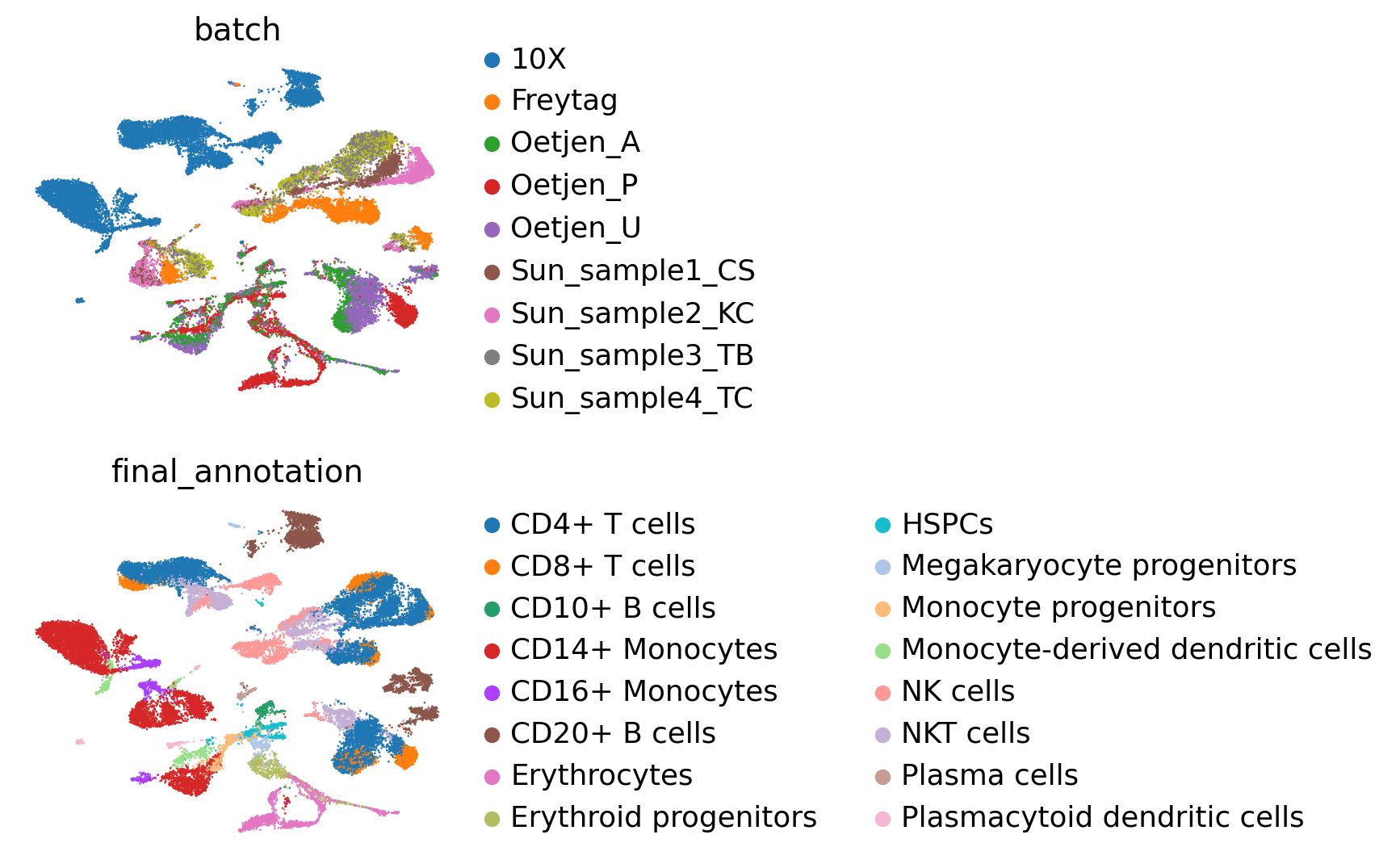

sc.pl.umap(adata, color=["batch", "final_annotation"], ncols=1, frameon=False)
# Save pre-processed data for next notebooks
if overwrite or not (io_dir / "adata_preprocesses.h5ad").exists():
adata.write_h5ad(io_dir / "adata_preprocesses.h5ad")
Train DRVI#
# You can also skip this cell if model is already trained
# Setup data
DRVI.setup_anndata(
adata,
# DRVI accepts count data by default.
# Do not forget to change gene_likelihood if you provide a non-count data.
layer="counts",
batch_key="batch",
# In addition to batch_key, you can also provide additional `categorical_covariate_keys`.
# DRVI accepts count data by default.
# Set to false if you provide log-normalized data and use normal distribution (mse loss).
is_count_data=True,
)
# Setting seed (set to None if you don't want to fix seed)
scvi.settings.seed = SEED
# construct the model
model = DRVI(
adata,
n_latent=128,
# For encoder and decoder dims, provide a list of integers.
encoder_dims=[128, 128],
decoder_dims=[128, 128],
# depending on the variability of gene dispersions use 'gene' (default) or 'gene-batch'
# dispersion='gene',
# dispersion='gene-batch',
)
model
INFO DRVI: The model has been initialized
DRVI Latent size: 128, splits: 128, pooling of splits: 'logsumexp', Encoder dims: [128, 128], Decoder dims: [128, 128], Gene likelihood: pnb, Training status: Not Trained
# For cpu training you should add the following line to the model.train parameters:
# accelerator="cpu", devices=1,
#
# For mps acceleration on macbooks, add the following line to the model.train parameters:
# accelerator="mps", devices=1,
#
# For gpu training don't provide any additional parameter.
# More details here: https://lightning.ai/docs/pytorch/stable/accelerators/gpu_basic.html
n_epochs = 400
model_path = io_dir / "drvi_model"
# train the model and save (if not already trained)
if overwrite or not model_path.exists():
model.train(
max_epochs=n_epochs,
early_stopping=False,
early_stopping_patience=20,
# mps
# accelerator="mps", devices=1,
# cpu
# accelerator="cpu", devices=1,
# gpu: no additional parameter
#
# No need to provide `plan_kwargs` if n_epochs >= 400.
plan_kwargs={
"n_epochs_kl_warmup": n_epochs,
},
)
# Save the model
model.save(model_path, overwrite=True)
# Runtime:
# The runtime for CPU laptop (M1) is 208 minutes
# The runtime for Macbook gpu (M1) is 64 minutes
# The runtime for GPU (H100) is 10 minutes
Epoch 400/400: 100%|██████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 400/400 [09:35<00:00, 1.42s/it, v_num=1, train_loss=744]
Epoch 400/400: 100%|██████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 400/400 [09:35<00:00, 1.44s/it, v_num=1, train_loss=744]
Latent space#
# Load the model
model = DRVI.load(model_path, adata)
model
INFO File tmp_io/drvi_immune_128/drvi_model/model.pt already downloaded
INFO DRVI: The model is trained with DRVI version 0.2.2.
INFO DRVI: Updaging data setup config ...
INFO DRVI: Done updating data source registry. Loading in DRVI version 0.2.2.
INFO DRVI: Loading model from DRVI version 0.2.2.
INFO DRVI: Done updating model args. Loading in 0.2.2.
INFO DRVI: The model has been initialized
DRVI Latent size: 128, splits: 128, pooling of splits: 'logsumexp', Encoder dims: [128, 128], Decoder dims: [128, 128], Gene likelihood: pnb, Training status: Trained
embed_path = io_dir / "embed.h5ad"
# Create latent space data in anndata format
if overwrite or not embed_path.exists():
embed = ad.AnnData(model.get_latent_representation(), obs=adata.obs)
# We set latent dimension stats here (see docs for more info)
print("Setting latent dimension stats ...")
model.set_latent_dimension_stats(embed, vanished_threshold=0.5)
# We immediately calculate the interpretability gene scores with different approaches
print("Calculating gene scores per factor ...")
# out-of-distribution (OOD) approach uses decoder reconstructions to calculate gene scores (faster)
model.calculate_interpretability_scores(embed, "OOD")
# within-distribution (IND) approach iterates over all cells and calculates gene scores
model.calculate_interpretability_scores(embed, "IND")
print("Dimension reduction ...")
sc.pp.neighbors(embed, n_neighbors=10, use_rep="X", n_pcs=embed.X.shape[1])
sc.tl.umap(embed, spread=1.0, min_dist=0.5, random_state=123)
sc.pp.pca(embed)
print("Writing ...")
embed.write_h5ad(embed_path)
Setting latent dimension stats ...
Calculating gene scores per factor ...
INFO DRVI: Using all 9 combinations of batch and categorical covariates.
Dimension reduction ...
Writing ...
embed = sc.read_h5ad(embed_path)

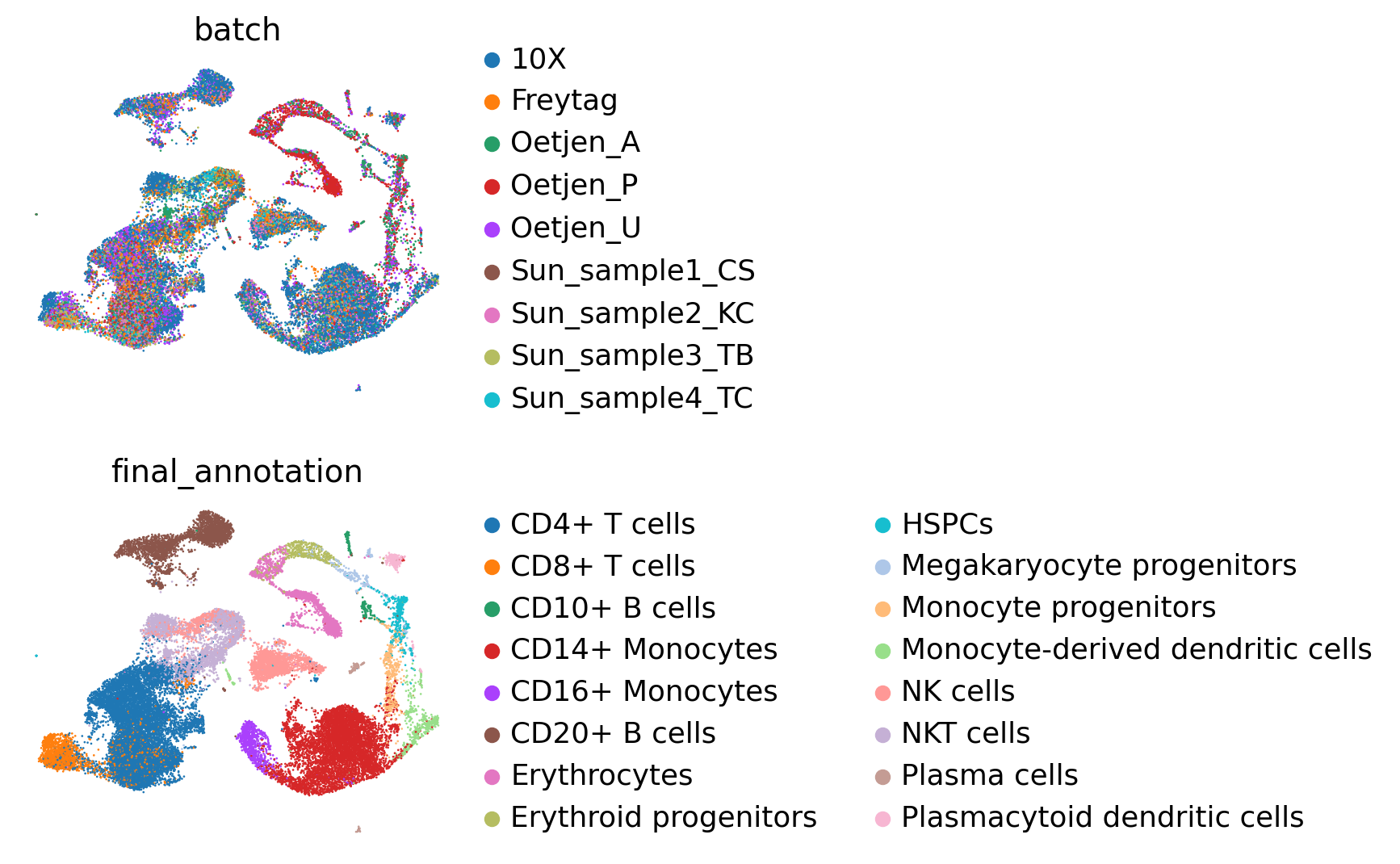

sc.pl.umap(embed, color=["batch", "final_annotation"], ncols=1, frameon=False)
Check latent dimension stats#
# Show information for latent factors
embed.var.sort_values("reconstruction_effect", ascending=False)[:5]
| original_dim_id | reconstruction_effect | order | max_value | mean | min | max | std | std_abs | title | vanished | vanished_positive_direction | vanished_negative_direction | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 22 | 22 | 45004156.0 | 0 | 2.504406 | -0.165174 | -2.504406 | 1.787719 | 0.928461 | 0.472378 | DR 1 | False | False | False |
| 7 | 7 | 8742346.0 | 1 | 4.165478 | 0.023959 | -4.165478 | 1.614366 | 0.884914 | 0.589884 | DR 2 | False | False | False |
| 44 | 44 | 7911819.5 | 2 | 3.167037 | 0.018338 | -3.167037 | 1.579996 | 0.869737 | 0.549752 | DR 3 | False | False | False |
| 31 | 31 | 7862128.0 | 3 | 4.540383 | -0.075561 | -1.598019 | 4.540383 | 0.763927 | 0.604845 | DR 4 | False | False | False |
| 71 | 71 | 7578233.5 | 4 | 4.139865 | -0.030023 | -1.367767 | 4.139865 | 0.747217 | 0.609722 | DR 5 | False | False | False |

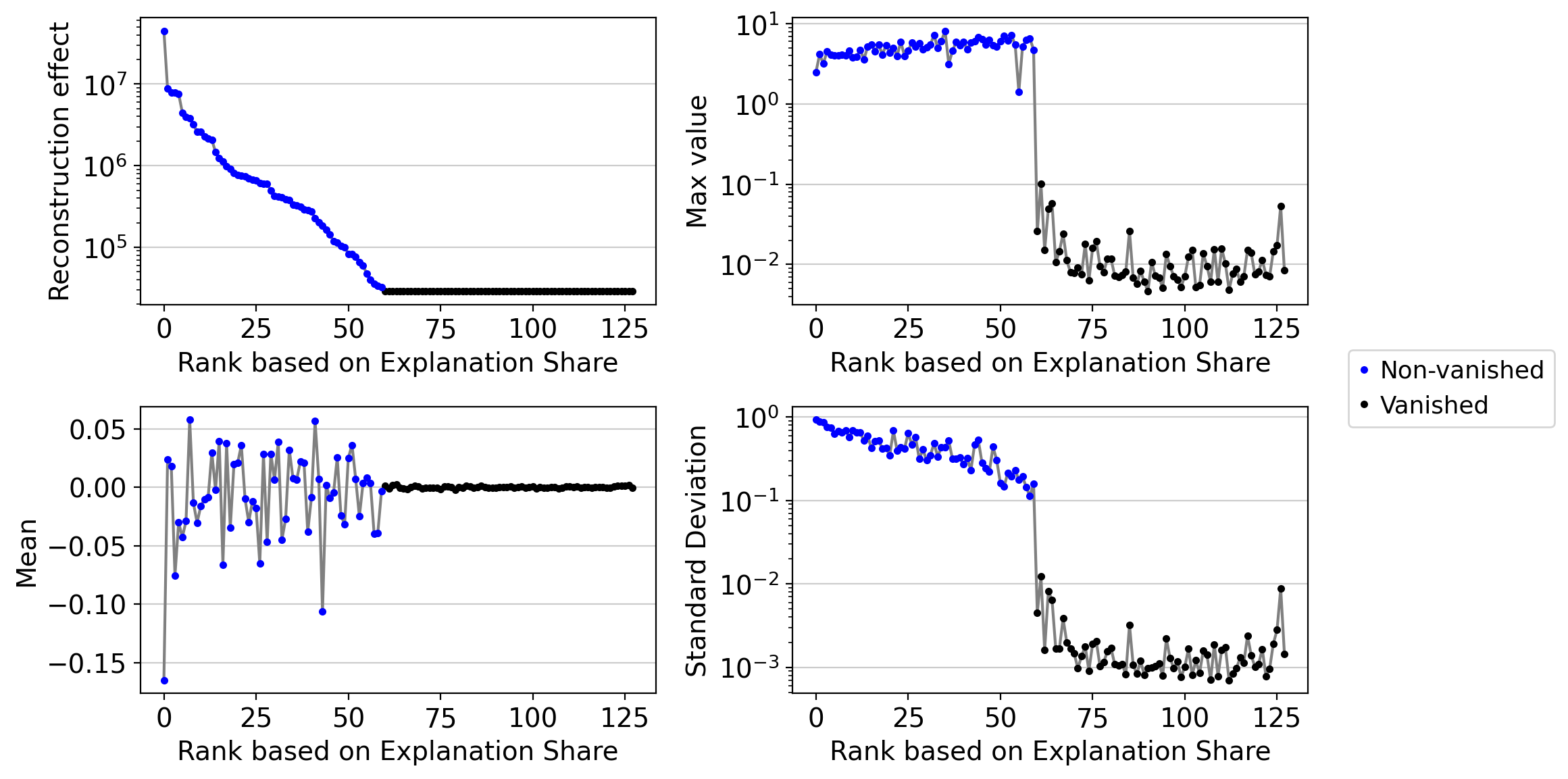

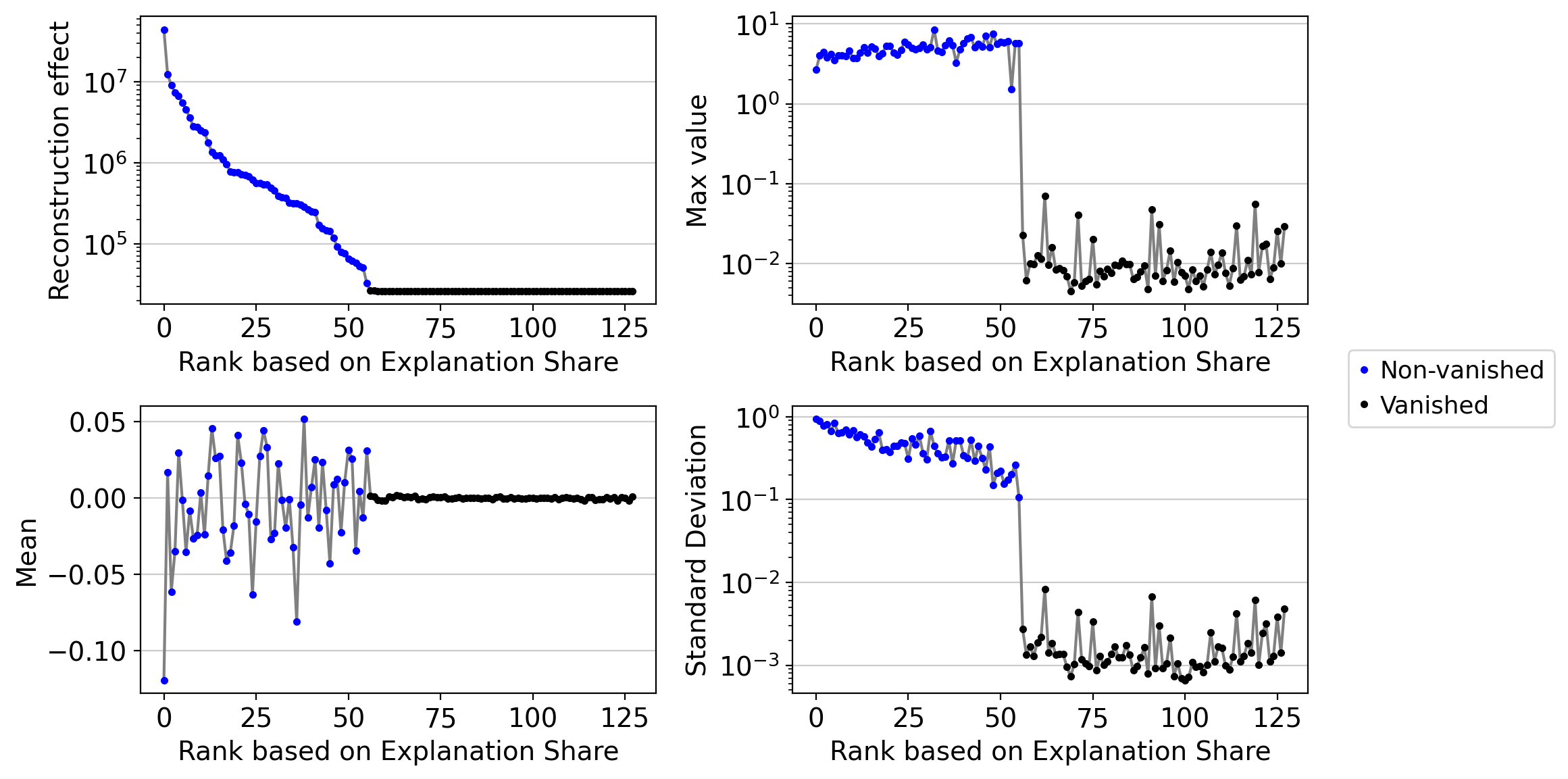

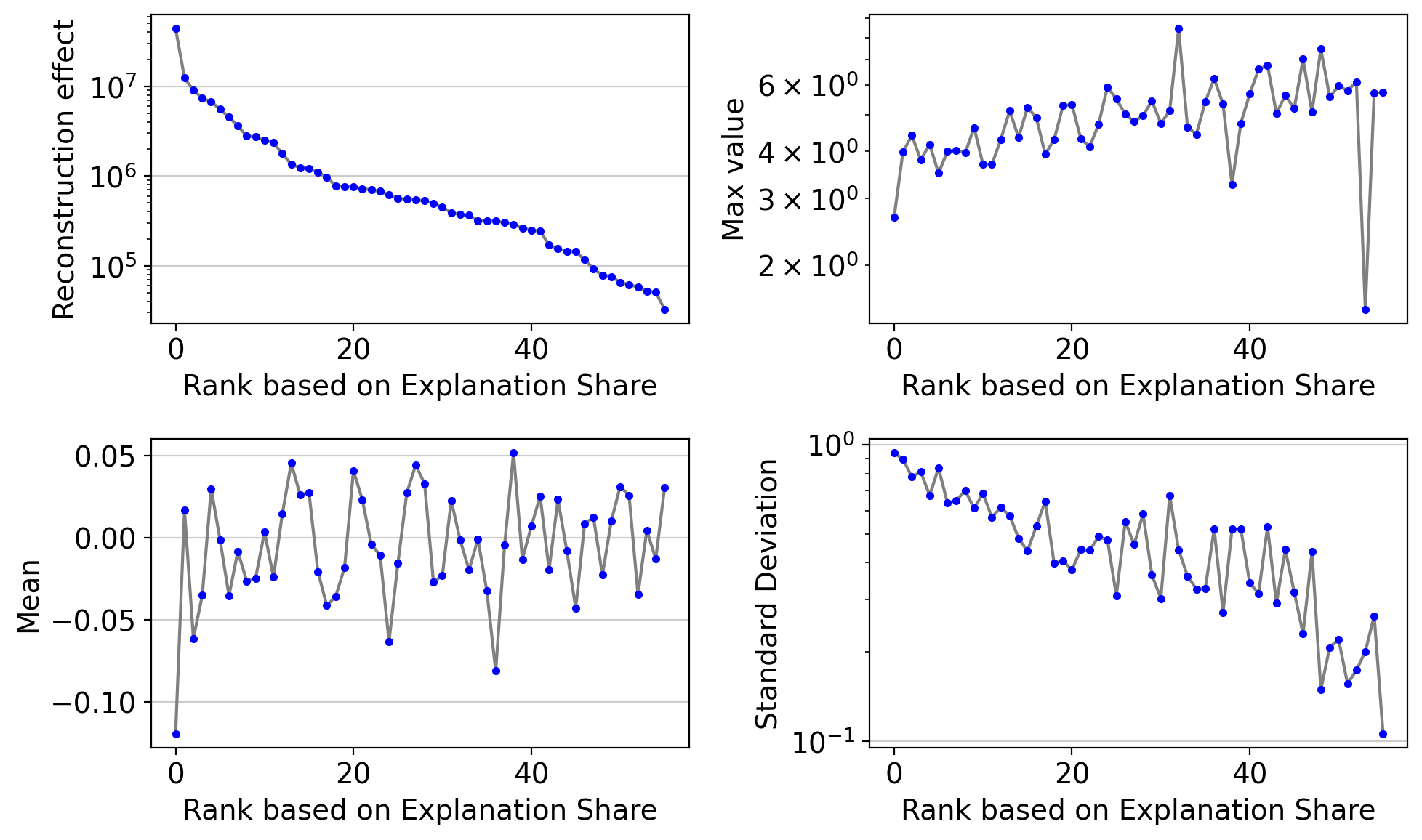

drvi.utils.pl.plot_latent_dimension_stats(embed, ncols=2)
You can check the same plot after removing vanished dimensions

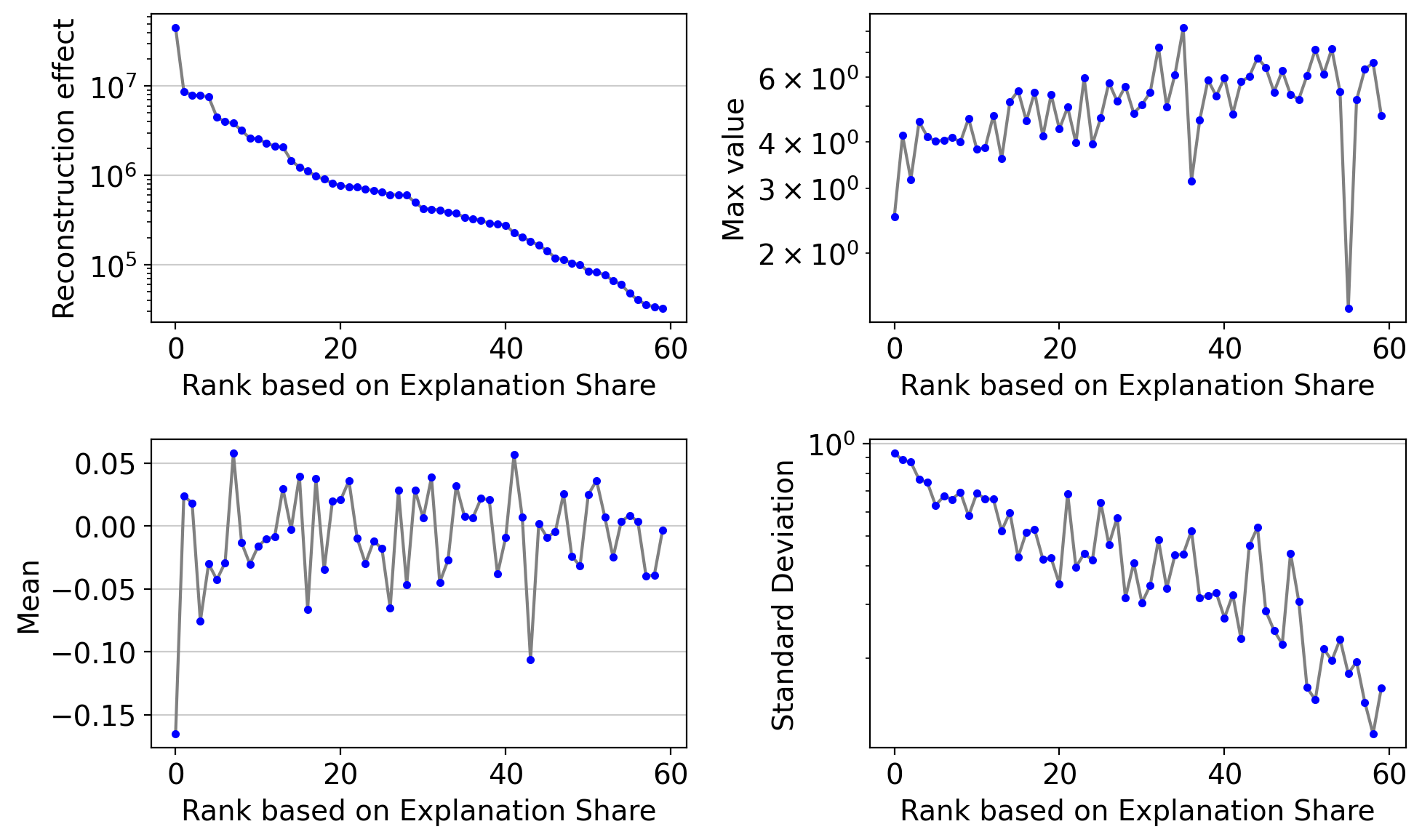

drvi.utils.pl.plot_latent_dimension_stats(embed, ncols=2, remove_vanished=True)
Plot latent dimensions#
By default, vanished dimensions are not plotted. Change arguments if you would like to.
UMAP#

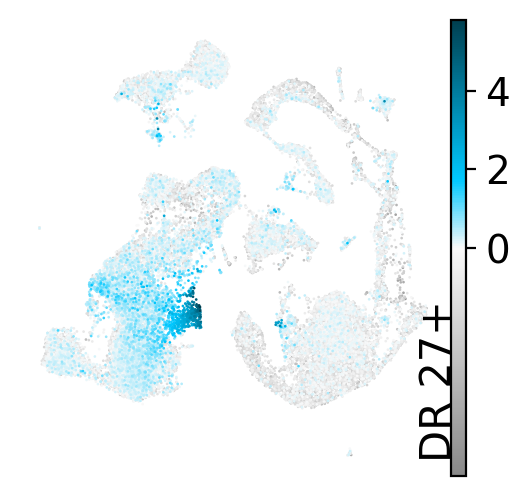

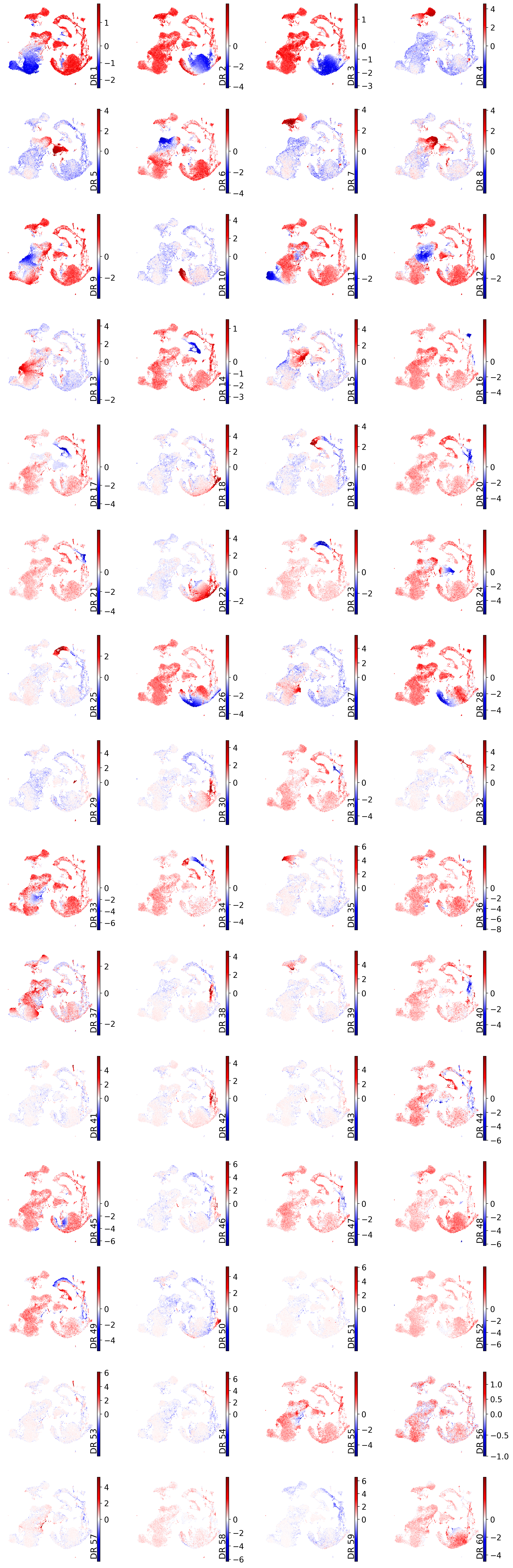

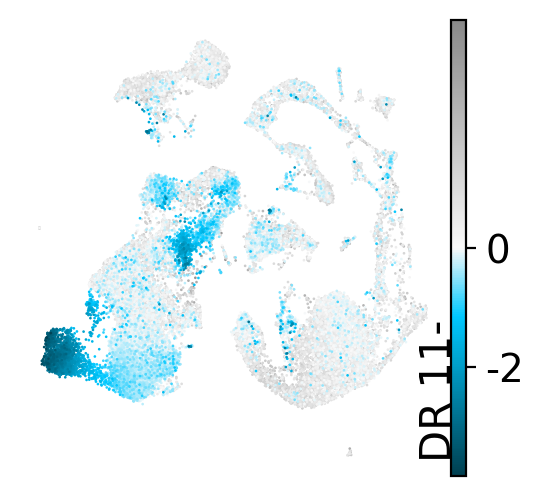

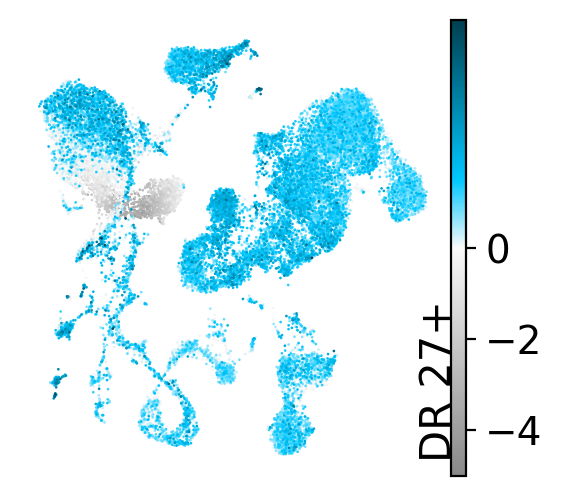

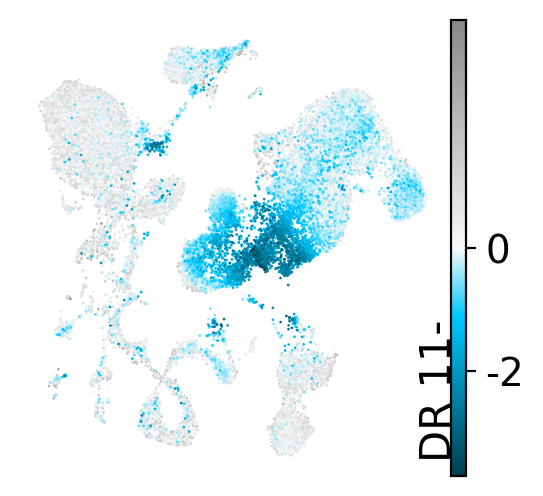

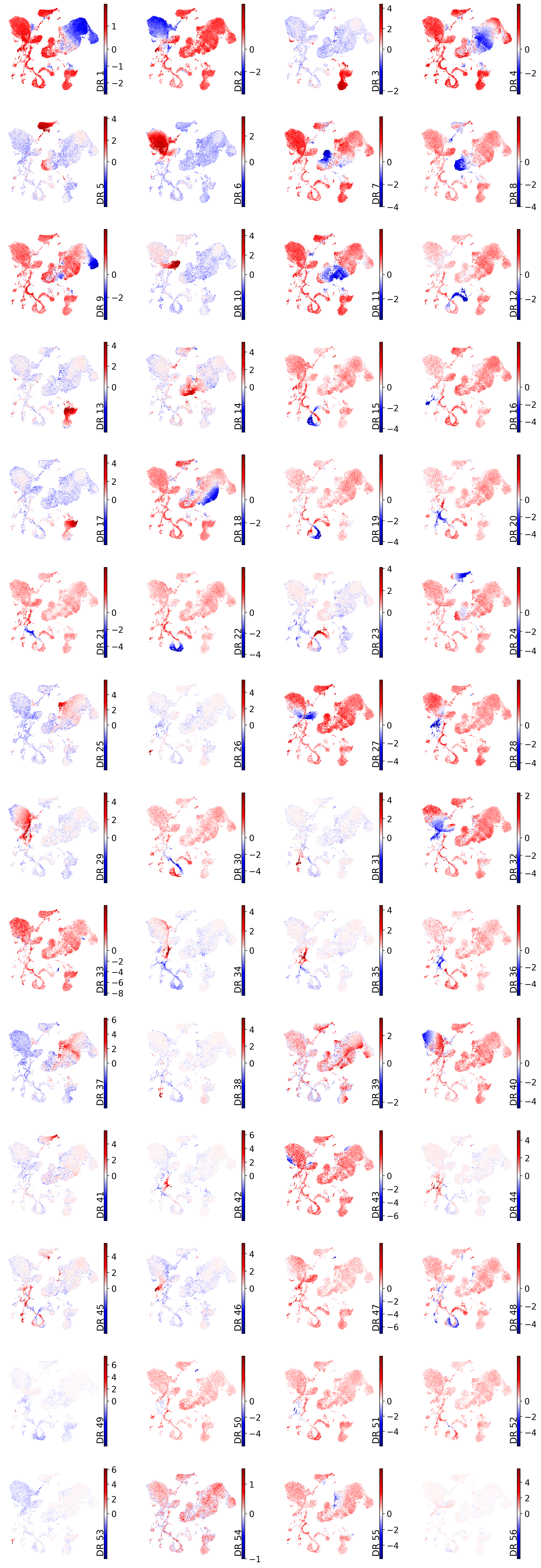

drvi.utils.pl.plot_latent_dims_in_umap(embed)
Heatmap#

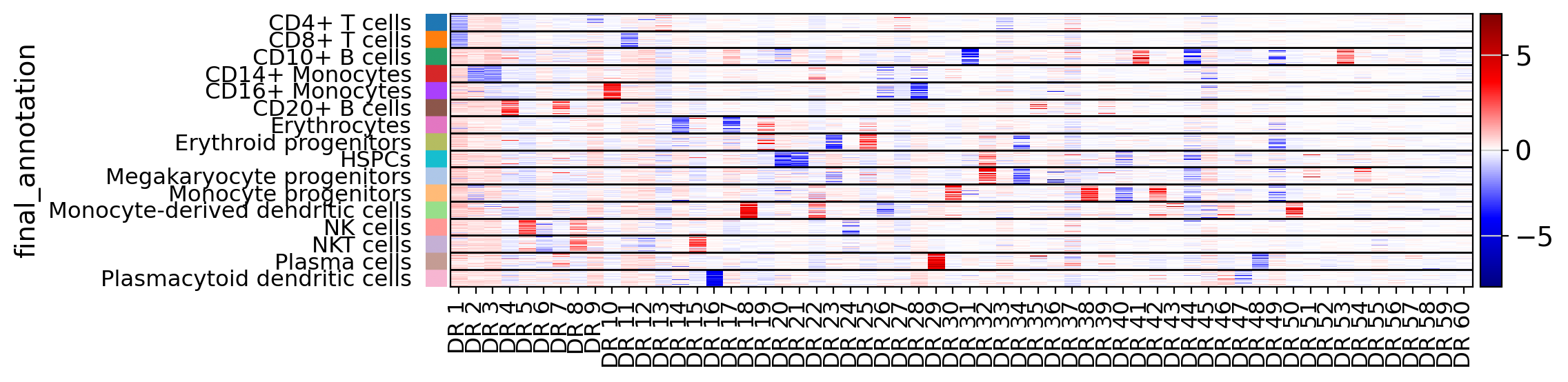

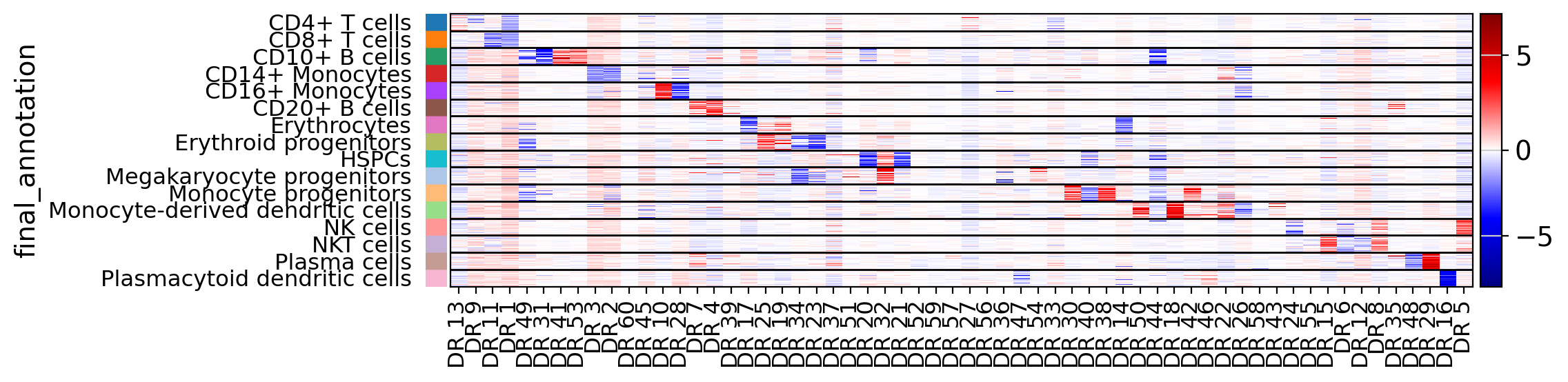

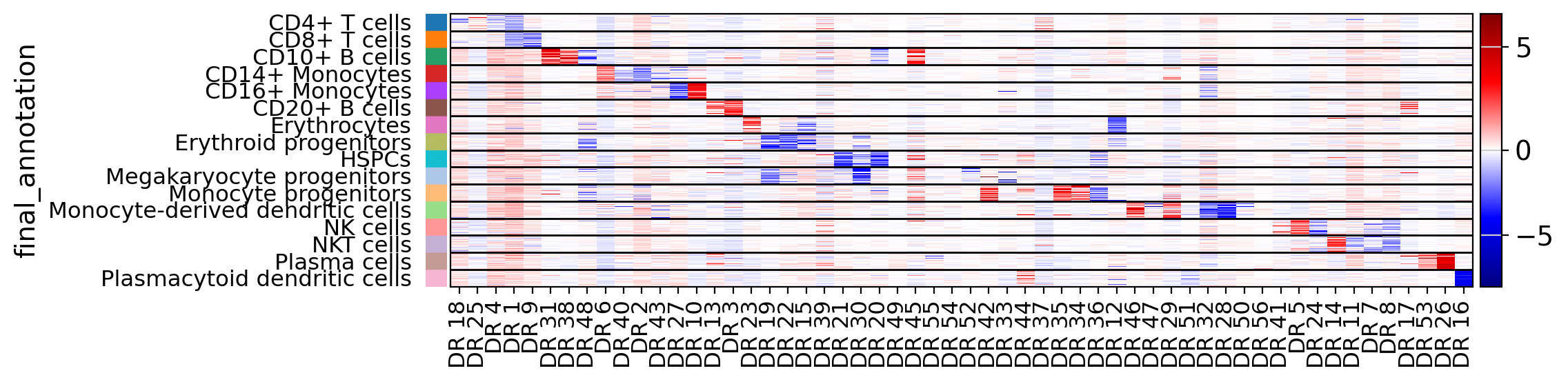

Heatmaps can be useful to visualize general relationship between latent dims and known categories of data

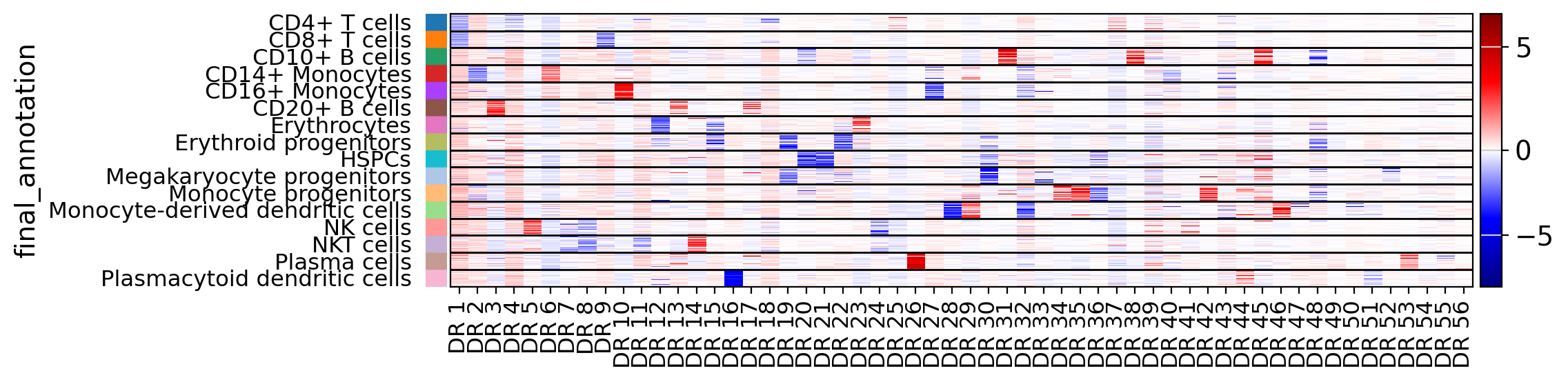

drvi.utils.pl.plot_latent_dims_in_heatmap(embed, "final_annotation", title_col="title")
It is possible to sort dimensions based on the top relevance with respect to a categorical variable
drvi.utils.pl.plot_latent_dims_in_heatmap(embed, "final_annotation", title_col="title", sort_by_categorical=True)
Interpretability#
The scores are already calculated and stored in embed.varm.
embed.varm
AxisArrays with keys: IND_exp_weighted_mean_negative, IND_exp_weighted_mean_positive, IND_linear_weighted_mean_negative, IND_linear_weighted_mean_positive, IND_max_negative, IND_max_positive, OOD_combined_negative, OOD_combined_positive, OOD_max_possible_negative, OOD_max_possible_positive, OOD_min_possible_negative, OOD_min_possible_positive, PCs
Out-Of-Distribution (OOD) scores#
This approach iterates over latent dimensions and calculates decoder effects.
We first visualize gene scores based on default algorithm (optionally you can pass key="OOD_combined")
These scores show a combination of max effect and specificity. So, this is our suggested method to consider for finding cell-types and most specific genes of a program.
If human readable gene symbols are present in a different column of adata other than adata.var.index, please pass that column as gene_symbols=... to the function.

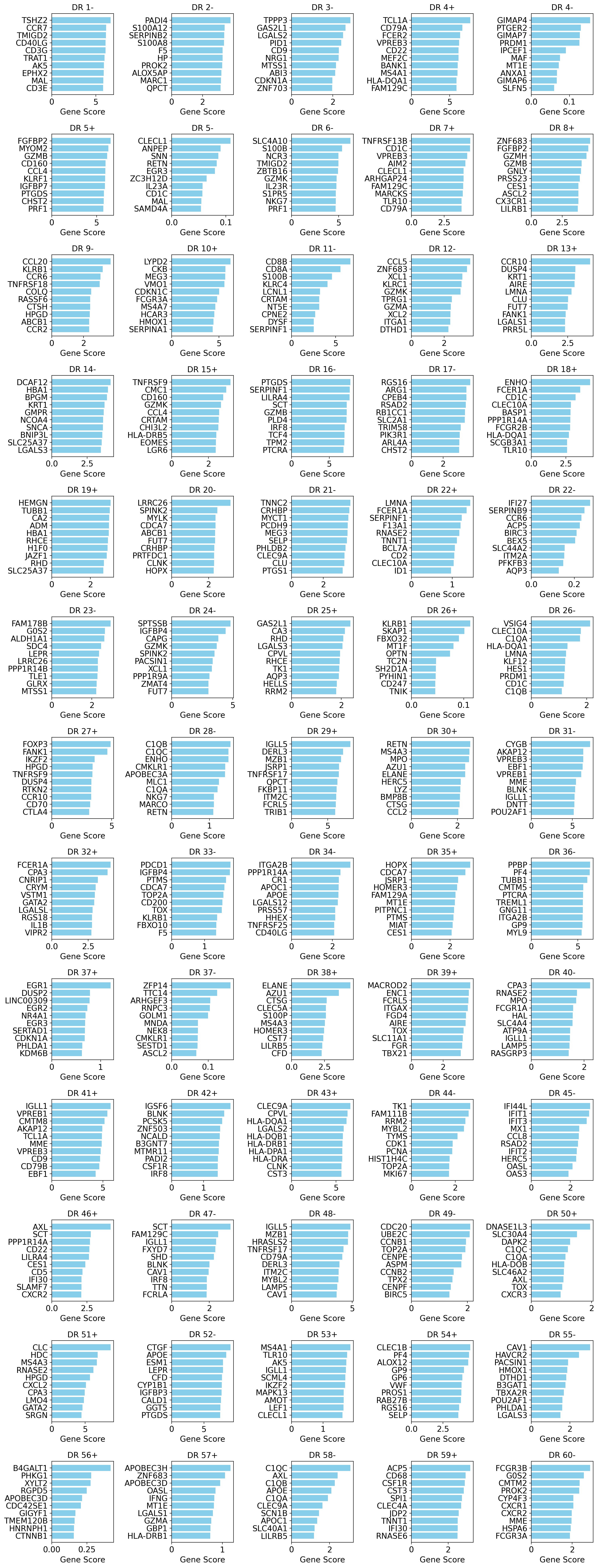

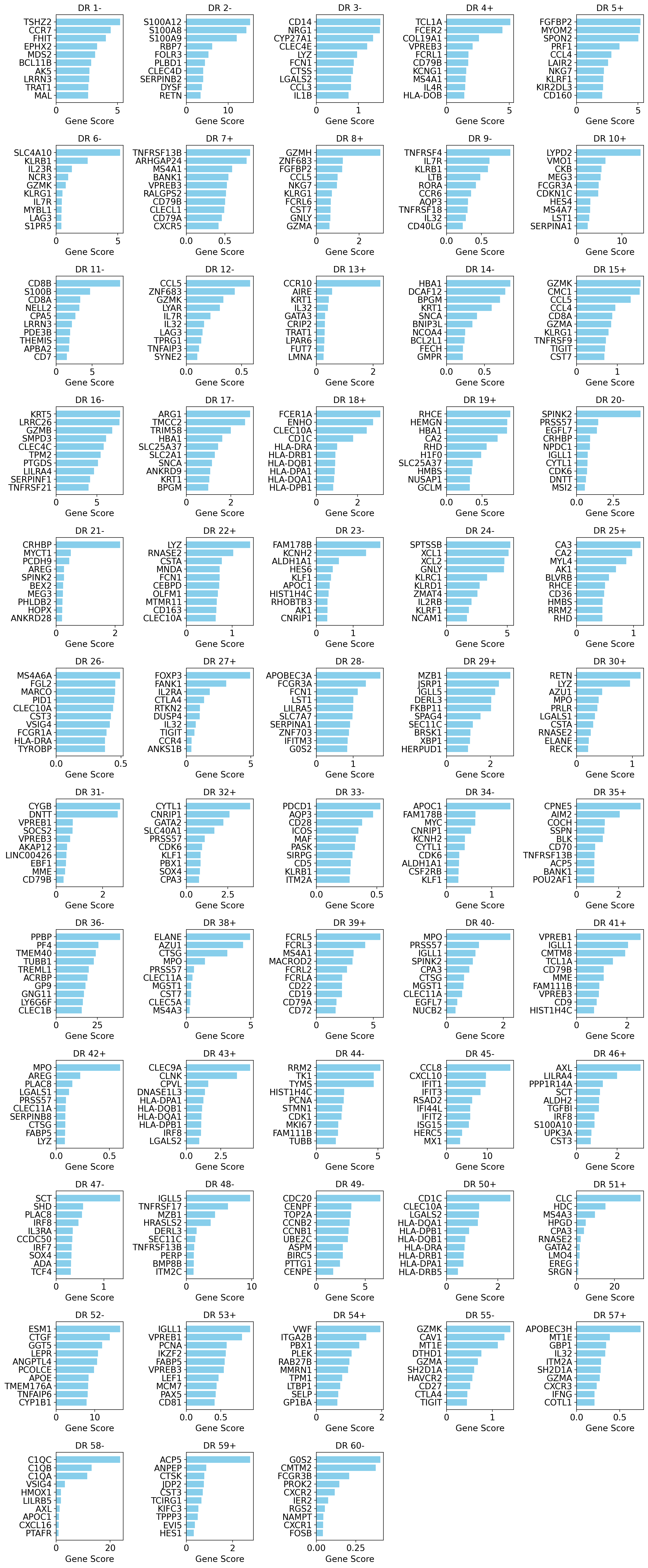

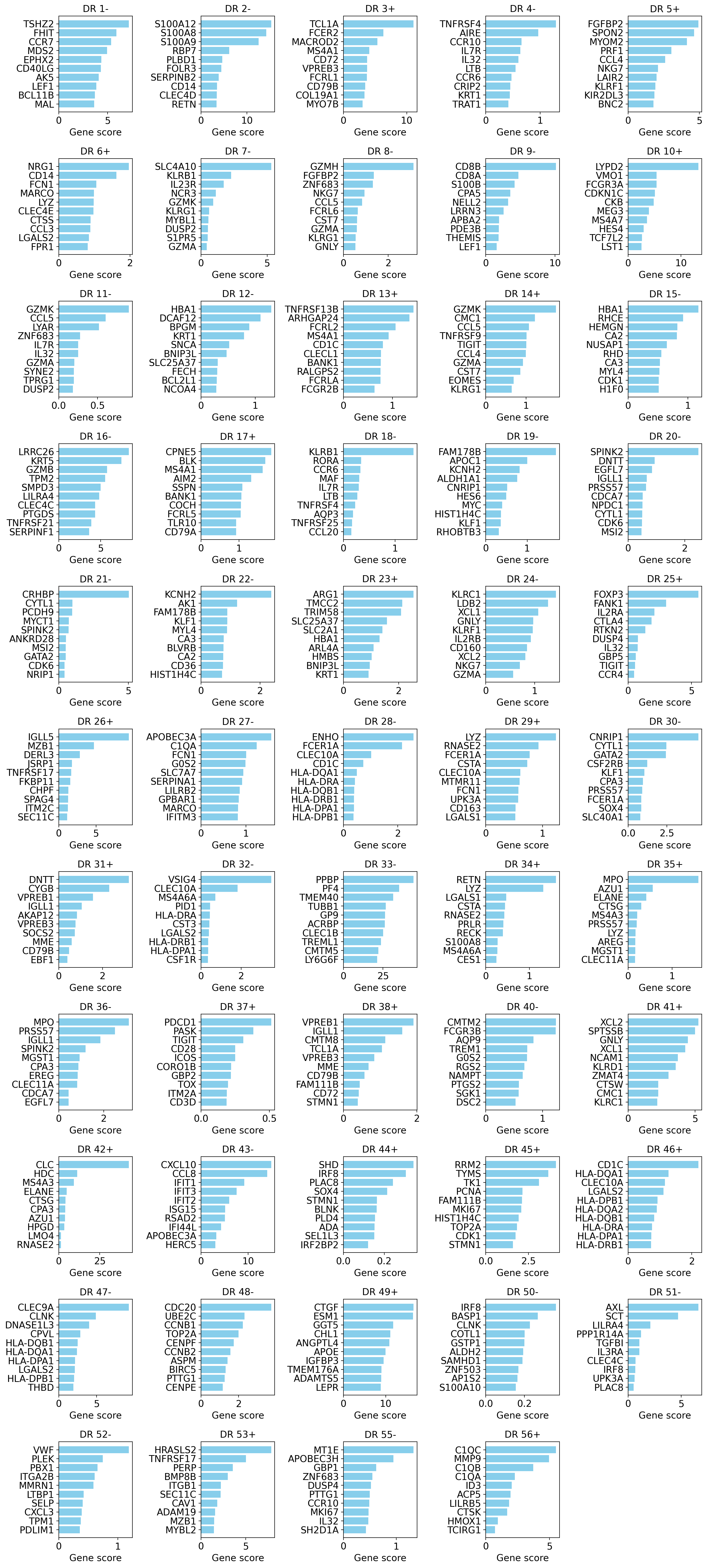

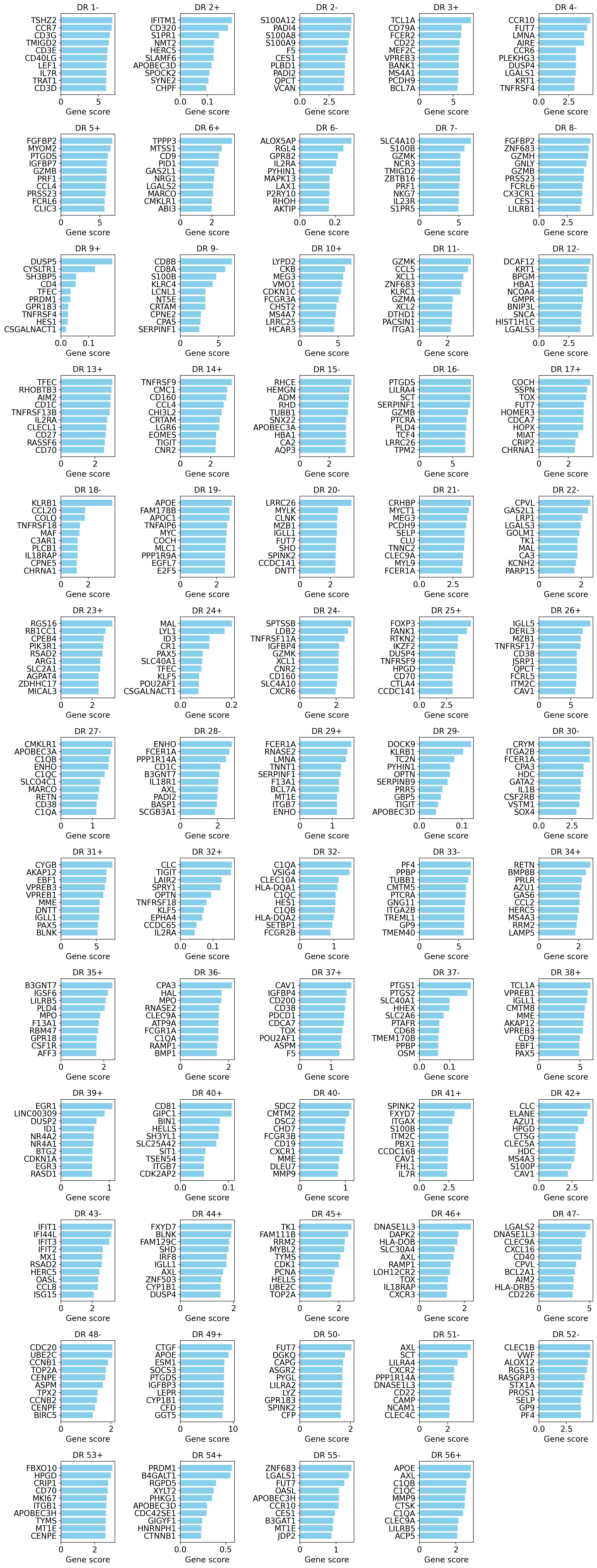

model.plot_interpretability_scores(embed, adata)
You can get all scores as a dataframe:
# Note: Genes (rows of the dataframe) appear as in adata and are not sorted.
scores_df = model.get_interpretability_scores(embed, adata)
scores_df.iloc[:10, :10]
| title | DR 1+ | DR 1- | DR 2+ | DR 2- | DR 3+ | DR 3- | DR 4+ | DR 4- | DR 5+ | DR 5- |
|---|---|---|---|---|---|---|---|---|---|---|
| index | ||||||||||
| TCL1A | 1.326346e-11 | 0.003166 | 3.001333e-11 | 0.000882 | 1.157079e-10 | 0.000142 | 5.085912 | 2.611766e-10 | 0.000781 | 1.250808e-10 |
| IGLL5 | 0.000000e+00 | 0.000399 | 0.000000e+00 | 0.000200 | 7.073848e-12 | 0.000076 | 0.206973 | 0.000000e+00 | 0.000005 | 9.213687e-11 |
| PTGDS | 3.211022e-11 | 0.001098 | 1.022424e-10 | 0.000762 | 1.041750e-09 | 0.000057 | 0.000024 | 2.149253e-07 | 0.536517 | 1.011813e-10 |
| GZMB | 1.007771e-10 | 0.009162 | 1.195000e-09 | 0.002575 | 1.440311e-09 | 0.000635 | 0.001380 | 1.261798e-09 | 1.388031 | 2.397479e-09 |
| PPBP | 3.383320e-10 | 0.001023 | 2.251707e-09 | 0.001824 | 7.737779e-10 | 0.000288 | 0.000120 | 4.508820e-09 | 0.000086 | 2.800739e-09 |
| CD79A | 0.000000e+00 | 0.007296 | 1.226757e-09 | 0.001286 | 5.193467e-10 | 0.000225 | 1.386578 | 1.940003e-10 | 0.000209 | 1.906442e-08 |
| FGFBP2 | 6.965214e-11 | 0.016959 | 4.911019e-10 | 0.002995 | 6.321999e-10 | 0.001569 | 0.004097 | 5.377135e-10 | 5.202093 | 2.243989e-09 |
| FCGR3A | 9.137365e-09 | 0.003884 | 2.377571e-10 | 0.005557 | 1.226049e-10 | 0.005243 | 0.000435 | 5.879858e-09 | 0.547351 | 1.396832e-10 |
| GNLY | 6.740619e-10 | 0.029603 | 2.090752e-09 | 0.008903 | 1.907071e-08 | 0.001928 | 0.008699 | 5.933887e-07 | 2.055596 | 3.856763e-09 |
| GZMH | 1.222942e-09 | 0.026941 | 2.769942e-09 | 0.004658 | 1.570753e-08 | 0.000209 | 0.002751 | 4.809307e-09 | 1.293083 | 3.032773e-09 |
A user can take a deeper look into individual dimensions. By visualizing the min_possible, and max_possible log-fold-changes of each dimension in OOD settings. Please refer to paper appendix for details on these scores that together form OOD_combined.
scores_df = model.get_interpretability_scores(embed, adata, key="OOD_max_possible")
scores_df = model.get_interpretability_scores(embed, adata, key="OOD_min_possible")
or for visualization:
model.plot_interpretability_scores(embed, adata, key="OOD_max_possible")
model.plot_interpretability_scores(embed, adata, key="OOD_max_possible")

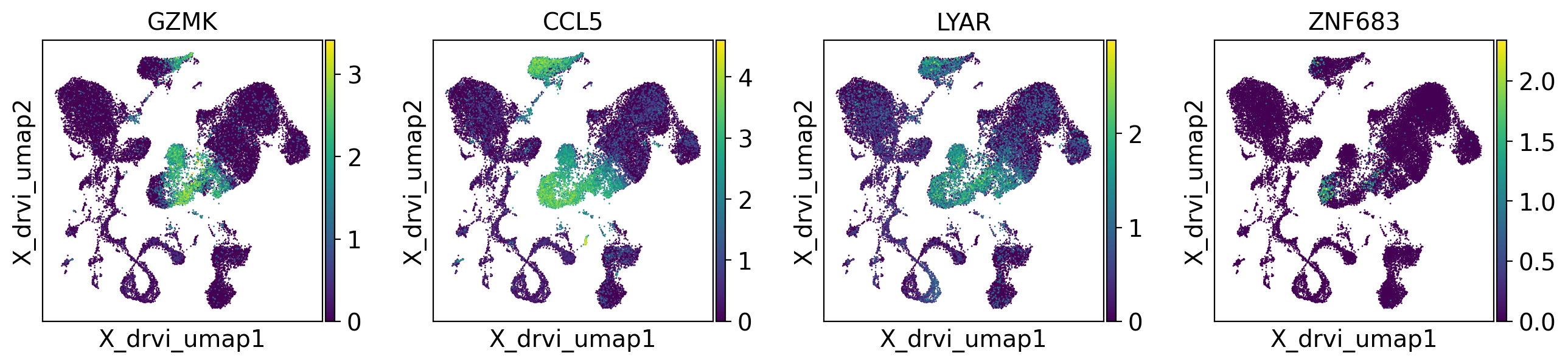

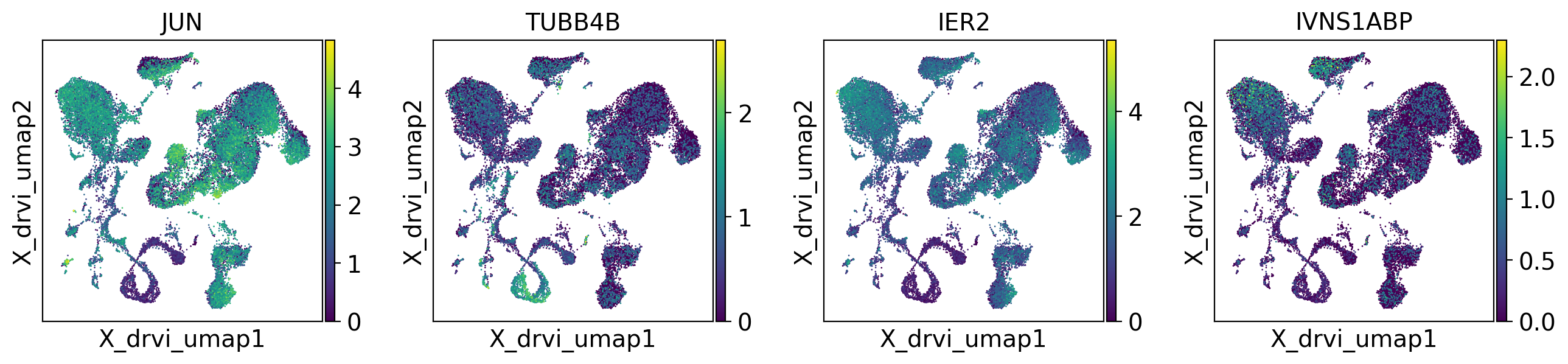

Users can plot top relevant genes of a factor on UMAP using scanpy plotting functions:
# DR 11- shows CD8+ cells and DR 27+ shows T-reg (May vary depending on the system and initialization)
# We first copy UMAP embeddings to original anndata
adata.obsm['X_drvi_umap'] = embed[adata.obs.index].obsm['X_umap']
# Show top 4 genes related to these two dimensions
for dim_title in ['DR 11-', 'DR 27+']:
print(dim_title)
top_genes = scores_df[dim_title].sort_values(ascending=False).index.to_list()[:4]
drvi.utils.pl.plot_latent_dims_in_umap(embed, dim_subset=[dim_title], directional=True)
sc.pl.embedding(adata, "X_drvi_umap", color=top_genes)

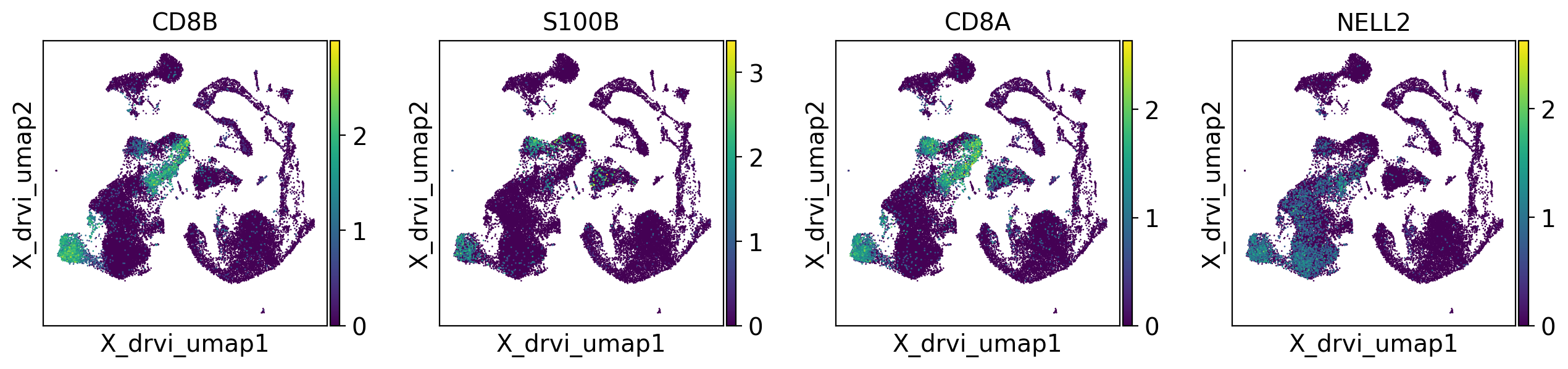

DR 11-

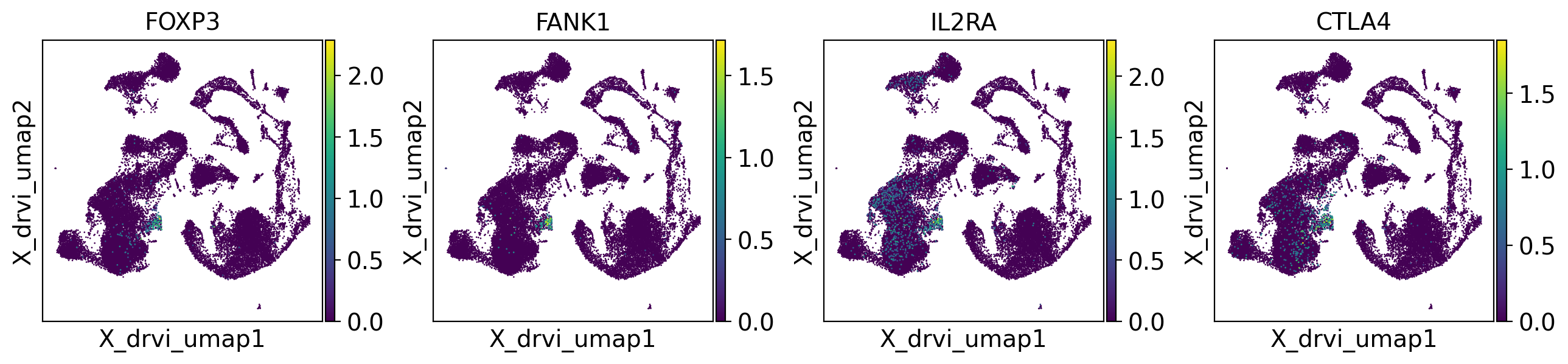

DR 27+
Within-Distribution (IND) scores#
This approach iterates over all cells in anndata and averages the effect of each latent factor on each gene. The scores are already stored in embed.
These scores reflect the broad mechanistic effect of each latent dimension. Because genes are not filtered for uniqueness, shared genes retain high scores, providing a complete view of how each factor influences the genetic landscape.
model.plot_interpretability_scores(embed, adata, key="IND_linear_weighted_mean")
You can get all scores as a dataframe:
# Note: Genes (rows of the dataframe) appear as in adata and are not sorted.
scores_df = model.get_interpretability_scores(embed, adata, key="IND_linear_weighted_mean")
scores_df.iloc[:10, :10]
| title | DR 1+ | DR 1- | DR 2+ | DR 2- | DR 3+ | DR 3- | DR 4+ | DR 4- | DR 5+ | DR 5- |
|---|---|---|---|---|---|---|---|---|---|---|
| index | ||||||||||
| TCL1A | 0.000149 | 2.536831 | 0.001666 | 0.873762 | 0.002382 | 0.849217 | 7.703324 | 0.000042 | 2.097965 | 0.002969 |
| IGLL5 | 0.000017 | 2.506825 | 0.000274 | 0.686494 | 0.000293 | 0.586317 | 5.000587 | 0.000074 | 1.045412 | 0.004164 |
| PTGDS | 0.000732 | 2.324526 | 0.002077 | 1.075860 | 0.005422 | 0.512504 | 0.537876 | 0.021270 | 5.812484 | 0.000510 |
| GZMB | 0.000355 | 2.541396 | 0.001816 | 0.874969 | 0.001627 | 0.811381 | 1.860552 | 0.001624 | 6.181503 | 0.000418 |
| PPBP | 0.004211 | 2.545240 | 0.000905 | 1.436478 | 0.000165 | 0.844233 | 1.456442 | 0.000507 | 1.272269 | 0.006260 |
| CD79A | 0.000099 | 3.372381 | 0.003432 | 1.269961 | 0.001312 | 0.767118 | 6.659008 | 0.000032 | 1.745533 | 0.009347 |
| FGFBP2 | 0.000147 | 2.785291 | 0.003460 | 0.626759 | 0.001119 | 0.890932 | 1.835172 | 0.000911 | 6.559466 | 0.000226 |
| FCGR3A | 0.005466 | 2.347882 | 0.001605 | 0.880429 | 0.001124 | 1.356983 | 1.440159 | 0.005142 | 5.742119 | 0.000527 |
| GNLY | 0.000742 | 2.445575 | 0.003193 | 1.150918 | 0.005265 | 0.746231 | 1.740617 | 0.009716 | 5.389999 | 0.000129 |
| GZMH | 0.002648 | 2.112393 | 0.001087 | 0.857266 | 0.007739 | 0.284412 | 1.245356 | 0.001816 | 4.966288 | 0.000807 |
Identification of programs#
Once we identify the top relevant genes, we can determine some programs through supervised external information, such as:
existing annotations
examination by biologists
gene-set enrichment analysis (GSEA)
scientific literature
automated tools based on language models
It is worth mentioning that since such supervised information is not given to the model, the quality of the derived signatures is neither affected nor biased by it. Unidentified processes with high gene scores are promising candidates for further literature search, additional analysis, and even experimental design.
